Configuration¶

All configurations take place in your project’s conf.py file.

Activation¶

Add sphinx_emf to your extensions:

extensions = ["sphinx_needs", "sphinx_emf", ]

Options¶

All configuration options start with the prefix emf_ for Sphinx-EMF.

Sphinx-EMF features some nested configuration parameters and therefore uses pydantic to validate the configuration. There are 3 pydantic classes defined:

• SphinxEmfCommonConfig parameters common to CLI and the Sphinx Builder

• SphinxEmfCliConfig CLI specific parameters

• SphinxEmfBuilderConfig Sphinx Builder specific parameters

The CLI script transforms from XMI to RST (needs) while the Sphinx Builder reads RST and writes XMI.

pydantic model SphinxEmfCommonConfig¶

Common configuration for both CLI (XMI -> RST) and builder (RST -> XMI).

field emf_path_ecore : StrictStr [Required]¶

Path to the ECore metamodel.

field emf_pre_xmi_read_hook : Callable[[ResourceSet], ResourceSet] | None = None¶

Function that shall be called before reading the XMI model.

Input parameter is the ECore metamodel ResourceSet. Must return the ECore metamodel ResourceSet again after modifying it.

This can be used to add custom model parts that are not part of the ECore metamodel.

field emf_post_xmi_read_hook : Callable[[XMIResource], list[Any]] | None = None¶

Function that shall be called after reading the XMI model.

Input paramter is the XMI model XMIResource. Must return a list of XMI model roots.

The main use case is the removal of unused XMI model roots.

field emf_class_2_need_def : dict[StrictStr, Class2NeedDefValues] = {}¶

Main configuration mapping from EMF ECore classes to need types.

Keys are ECore class names, values are instances of Class2NeedDefValues. Example:

emf_class_2_need_def = {
  "Story": {
    "need_static": {
      "type": "story",
    },
    "emf_to_need_options": [
      ("Name", "title"),
      ("_iternal_id", "id", gen_needs_id),
    ],
  },
}

For more explanation see Class2NeedDefValues.

class Class2NeedDefValues¶

Definition for SphinxEmfCommonConfig.emf_class_2_need_def.

need_static : dict[StrictStr, StrictStr]¶

Static needs options given as key-value pairs.

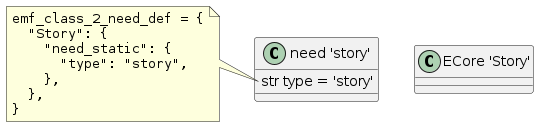

This is commonly used to set the need type. Example:

{
  'need_static': { 'type': 'story' }
}

emf_to_need_options : list[tuple[StrictStr, StrictStr] | tuple[StrictStr, StrictStr, Callable[[StrictStr, EObject, dict[StrictStr, Any]], StrictStr]]]¶

Define how ECore field names are copied to need extra options and links.

Any simple ECore type (bool, int, str, enum) leads to a needs extra option. ECore list types (EOrderedSet) produce a needs extra link.

Any ECore field that does not appear here and also not in emf_to_need_content will be ignored.

Tuple entries:

0. ECore field name

1. need extra option/link name

2. transformer function [optional]

The ECore field name tuple[0] will be transformed to the need extra option or need extra link given in tuple[1].

Any ECore values that lead to need extra options will be converted to string types.

Any Ecore list values lead to need extra links, even when the ECore definition is a containment (nested object). When converting back from RST to XMI, the ECore containment information from the ECore metamodel is used to transform a needs link correctly back to an ECore containment. This makes it possible to change the link modeling for Sphinx-Needs. Users may want to write certain need types to dedicated files which makes it impossible to model them as UML composition (containment) - which in the Sphinx-Needs world - is realized as nested needs.

The transformer function is only allowed for simple types that lead to need extra options. The function must support the following parameters:

• value ECore field value of tuple[0] field name

• ecore_item full ECore object; can be used to access other ECore fields

• context empty dicionary, will be the same instance for all invocations of transformers; and can be used to hold context information across invocations

The function must return a str type.

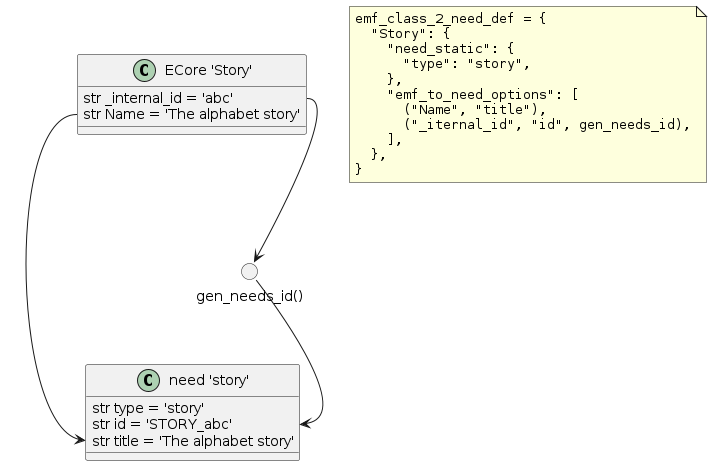

A use case for transformers is to generate unique need IDs from ECore fields. Example:

def gen_needs_id(value: str, ecore_item: Any, context: Dict[str, Any]) -> str:
  need_prefixes = {
    'Story': 'STORY_',
    'Requirement': 'REQ_',
  }
  prefix = need_prefixes[ecore_item.__class__.__name__]
  need_id = prefix + value.upper()
  return need_id

emf_class_2_need_def = {
  "Story": {
    "need_static": {
      "type": "story",
    },
    "emf_to_need_options": [
      ("Name", "title"),  # need title: direct copy the 'Name' field
      ("_iternal_id", "id", gen_needs_id),  # need id: use a transformer
    ],
  },
}

Note

pyecore stores the XMI unique identifiers in the field _internal_id which can also be used.

emf_to_need_content : list[tuple[StrictStr, StrictStr] | tuple[StrictStr, StrictStr, Callable[[StrictStr, EObject, dict[StrictStr, Any]], StrictStr]]]¶

Define how ECore field names are copied to the need content area.

Tuple entries:

0. ECore field name

1. need content title

2. transformer function [optional]

Any simple ECore type (bool, int, str, enum) leads to a highlighted section in the need body with the tuple[1] prepended as bold text. Any ECore list type (EOrderedSet) produces a list of nested needs, so new need directives are added to the current need’s body. See also the description of emf_to_need_options about modeling of ECore list fields as linked needs or nested needs.

Example:

from sphinx_emf.user_hooks.escape_rst import to_rst

def escape_rst(value: str, ecore_item: Any, context: Dict[str, Any]) -> str:
  del ecore_item
  del context
  escaped_value = to_rst(value)
  return escaped_value

emf_class_2_need_def = {
  "Story": {
    "need_static": {
      "type": "story",
    },
    "emf_to_need_options": [
      ("Name", "title"),
      ("_iternal_id", "id", gen_needs_id),
    ],
    "emf_to_need_content": [
      ("Description", "Description"),
      ("LongDescription", "Long Description", escape_rst),
      ("Requirements", "Requirements"),
    ],
  },
}

.. story:: The alphabet story
   :id: STORY_abc

   **Description** Names all letters.

   **Long Description**

   Special care for:

   - the sort order and
   - not to forget a letter

   **Requirements**

   .. requirement:: Must be sorted
      :id: REQ_sorted

   .. requirement:: Must not forget a letter
      :id: REQ_forget

The transformer has the same parameters and return type as in emf_to_need_options. It can only be used for simple ECore types (bool, int, str, enum).

Note

In above example an ECore class called Requirement is missing in emf_class_2_need_def. It is needed to tell Sphinx-EMF how to represent the nested requirement need types. It is skipped to keep the example short.

Note

XMI does not specify any highlighting language such as Markdown, RestructuredText or HTML for plain text (multiline) fields. Therefore text fields cannot be copied 1:1 to RST as strings like the *.json files are not valid RST. The * needs to be escaped. Sphinx-EMF provides a function to transform plain text to RST. See above example how to import and use it. The function handles the following scenarios:

1. all incomplete inline literals are escaped

2. lists are correctly formatted

3. paragraphs are correctly formatted, line breaks lead to lines prepended with ‘| ‘

You may also decide to store RST directly to XMI. This however needs custom escaping of " as it is the start/stop sequence of values.

Any ECore field that does not appear here and also not in emf_to_need_options will be ignored.

settings : Class2NeedDefSettings¶

class Class2NeedDefSettings¶

Definition for Class2NeedDefValues.settings.

remove_if_unlinked : StrictBool¶

Remove the EMF type if it is not linked by other EMF types.

The idea of this parameter is to prevent importing ECore objects that are not needed (linked) by the main objects of interest. All ECore instances can be a link target in one way or another:

• they are a nested containment of another ECore instance

• they are linked by another ECore instance

If this setting is True, root ECore instances are ignored during import. The parameter remove_ignored_link_sources can be used to further specify the behavior.

remove_ignored_link_sources : list[StrictStr]¶

List of EMF types whose outgoing links are ignored when removing elements.

The setting is only relevant if remove_if_unlinked is True.

The setting can be used to also ignore (remove) elements that are contained in the listed types as nested elements or that are linked by the listed elements types. The elements will only be removed if they are not linked by other element types not listed here.

The main use case of the feature is to ignore containment links when removing ECore objects. Almost all ECore objects are contained by another ECore object.

pydantic model SphinxEmfCliConfig¶

Sphinx-EMF config model for the CLI that converts from XMI to RST.

field emf_path_xmi : StrictStr [Required]¶

Path to the ECore XMI model.

field emf_rst_output_configs : list[dict['path' | 'emf_types' | 'default', StrictStr | list[StrictStr] | StrictBool]] [Required]¶

Mapping of ECore types to output files.

This is needed to distribute ECore types from one XMI to multiple RST files.

Note

Any ECore type that goes to another file than its parent must be part of Class2NeedDefValues.emf_to_need_options of its original ECore parent. It cannot be be a nested need as it is located in a different file.

It is a list of dictionaries with the following keys:

• path (str) RST output file path

• emf_types (List[str]) list of ECore types for the file; must exist if default is not given or False [optional]

• default (bool) if True the file will be the target for all remaining ECore classes [optional]

Note

"default": True can only be set for one dictionary in the list

Note

emf_types must be unique across all list entries

Note

The list order is important as it defines which elements are moved first - with all its nested needs.

field emf_rst_indent : ConstrainedIntValue = 3¶

Amount of leading spaces for each RST code indentation level.

Constraints:¶

• exclusiveMinimum = 0

field emf_rst_write_default_values : StrictBool = False¶

Serialize XMI default values to RST need objects.

If False, need extra options and need content fields will not get created if the ECore field is not explicitly set in XMI.

If True, need extra options and need content fields get created with the default value even when the field is not explicitely set in XMI. For EBoolean types, if not given in the ECore metamodel as defaultValueLiteral, the default value is False.

Constraints:¶

• type = boolean

field emf_allowed_classes : list[StrictStr] = []¶

List of EMF class names that should be allowed for importing.

The filter fields

• emf_allowed_classes

• emf_denied_classes

• emf_allowed_values

• emf_denied_values

are evaluated with the following logic for each object instance in order:

• discard the object if

  • emf_allowed_classes is not empty and

  • the object class does not appear in emf_allowed_classes

• discard the object if

  • the object class appears in emf_denied_classes

• discard the object if

  • the class name appears in emf_allowed_values and

  • the values of the object fields don’t appear in emf_allowed_values

• discard the object if

  • the class name appears in emf_denied_values and

  • the values of the object fields appear in emf_denied_values

• if the logic reaches this point and the object is not discarded, it will be imported

field emf_denied_classes : list[StrictStr] = []¶

List of EMF class names that should be denied for importing.

For the filter evaluation logic see emf_allowed_classes.

field emf_allowed_values : dict[StrictStr, dict[StrictStr, list[StrictStr]]] = {}¶

Map EMF class names to EMF field names to allowed values of the fields.

For the filter evaluation logic see emf_allowed_classes.

field emf_denied_values : dict[StrictStr, dict[StrictStr, list[StrictStr]]] = {}¶

Map EMF class names to EMF field names to denied values of the fields.

For the filter evaluation logic see emf_allowed_classes.

field emf_sort_field : StrictStr = None¶

Sort ECore instances by this field to get reproducible RST output.

This affects containment links as well as non-containment links.

Set to None to disable sorting.

field emf_templates_dir : StrictStr = None¶

Path to a directory containing user defined Jinja2 templates to be injected into RST output.

They have access to all variables the Sphinx-EMF base template have access. When using those it is helpful to debug Sphinx-EMF and inspect available variables in the various templates.

The file names must follow a specific pattern to be recognized. Variable definition:

• <template-name> RST output file name without extension

• <need-type> is a need type

• <need-field> is a need field; can be an extra-option, extra-link, direct content or nested content

• <nested-need-type> is one instance of a nested need type in a <need-type> content area

• <nested-needs-title> is the title of all nested needs (of a single type) in a <need-type> content area

All file names must end on .rst.j2.

Templates have 3 types:

• pre injected before the item

• post injected after the item

• wrap wraps the item, so the need/content gets indented (useful for nested directives like dropdowns)

Patterns:

• <template-name>_header before all content in RST output file (see emf_rst_output_configs, without .rst)

• <template-name>_footer after all content in RST output file (see emf_rst_output_configs, without .rst)

• <need-type>_pre before the neeed

• <need-type>_post after the need

• <need-type>_wrap wraps the generated need

• <need-type>_options_fields_pre before all extra options

• <need-type>_options_fields_post after all extra options

• <need-type>_options_links_pre before all link options

• <need-type>_options_links_post after all link options

• <need-type>_content_direct_pre before all direct content

• <need-type>_content_direct_post after all direct content

• <need-type>_content_direct_wrap wraps all direct content

• <need-type>_content_direct_pre_<need-field> before a direct content needs field/section

• <need-type>_content_direct_post_<need-field> after a direct content needs field/section

• <need-type>_content_direct_wrap_<need-field> wraps a direct content needs field/section

• <need-type>_content_nested_pre before all nested content

• <need-type>_content_nested_post after all nested content

• <need-type>_content_nested_wrap wraps all nested content

• <need-type>_content_nested_pre_<nested-need-type> before each instance of a nested needs type

• <need-type>_content_nested_post_<nested-need-type> after each instance of a nested needs type

• <need-type>_content_nested_wrap_<nested-need-type> wraps each instance of a nested needs type

• <need-type>_content_nested_pre_all_<nested-needs-title> before all instances of a nested needs type

• <need-type>_content_nested_post_all_<nested-needs-title> after all instances of a nested needs type

• <need-type>_content_nested_wrap_all_<nested-needs-title> wraps all instances of a nested needs type

field emf_show_nested_need_title : StrictBool = True¶

Generate the title for nested needs as given in Class2NeedDefValues.emf_to_need_content tuple[1].

The setting exist as it might not be wanted because documentation readers will directly spot the nested need contents without a title. Also a template as documented in emf_templates_dir can be used to set a custom title.

Constraints:¶

• type = boolean

pydantic model SphinxEmfBuilderConfig¶

Sphinx-EMF config model for the Sphinx builder that converts from RST to XMI.

field emf_model_roots : list[StrictStr] = []¶

List of model roots, ordered as they shall appear in the exported XMI model.

field emf_sort_xmi_attributes : StrictBool = False¶

Sort attributes of XMI ECore classes by name.

Constraints:¶

• type = boolean

field emf_xmi_output_name : StrictStr = 'model.xmi'¶

Output name for the XMI file.

Directory is always the builder output, commonly _build/emf.

field emf_convert_rst_to_plain : StrictBool = True¶

Flag indicating whether to convert RST sequences to plain text.

The following sequences will be handled:

• explicit line breaks on start of line | will be removed

• \* will be converted to *

• \` will be converted to `

• \\ will be converted to \

Constraints:¶

• type = boolean
